Technical Parameters
Compliance: Meets the requirements of RS103
Operating Frequency: 10KHz - 40GHz
Output Power: 50 Watts - 3500 Watts
Input VSWR (Voltage Standing Wave Ratio): 2.0
Output VSWR (Voltage Standing Wave Ratio): 2.0 - 4.5
AC Operating Voltage: 198V - 240V, 340V - 530V
Operating Temperature: 0 - 40℃
I. Power Amplifier Series Models
|
Model
|
Frequency MHz |
Output PowerMin (Past) dBm |
Output Power Typ（P-1） dBm |
Gain Min dB |
Flatness Typ dB |
Output VSWR Typ
|
Input VSWR Typ
|
Dimension Length*Width*Heightmm*mm*mm |
|
LDPA9K100M3500 |
0.009-100 |
65.5 |
63 |
66 |
±3.0 |
5.0 |
2.0 |
480*550*1110 |
|
LDPA80M1G2000/1000 |
80-200 |
63 |
60 |
63 |
±4.0 |
5.0 |
2.0 |
480*550*1110 |
|
200-1000 |
60 |
57 |
60 |
|||||
|
LDPA1G6G250 |
1000-6000 |
54 |
50 |
54 |
±3.5 |
4.0 |
2.0 |
480*550*440 |
|
LDPA6G18G200 |
6000-18000 |
53 |
--- |
53 |
±5.0 |
3.0 |
2.0 |
480*550*222 |
|
LDPA18G40G50 |
18000-40000 |
47 |
--- |
47 |
±5.0 |
2.0 |
2.0 |
480*550*177 |
II. Technical Specifications

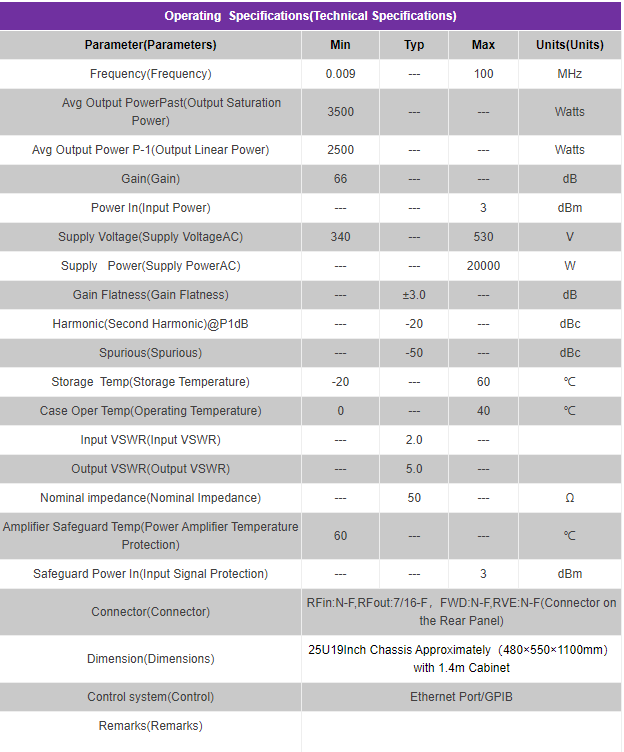

1Model: LDPA9K100M3500

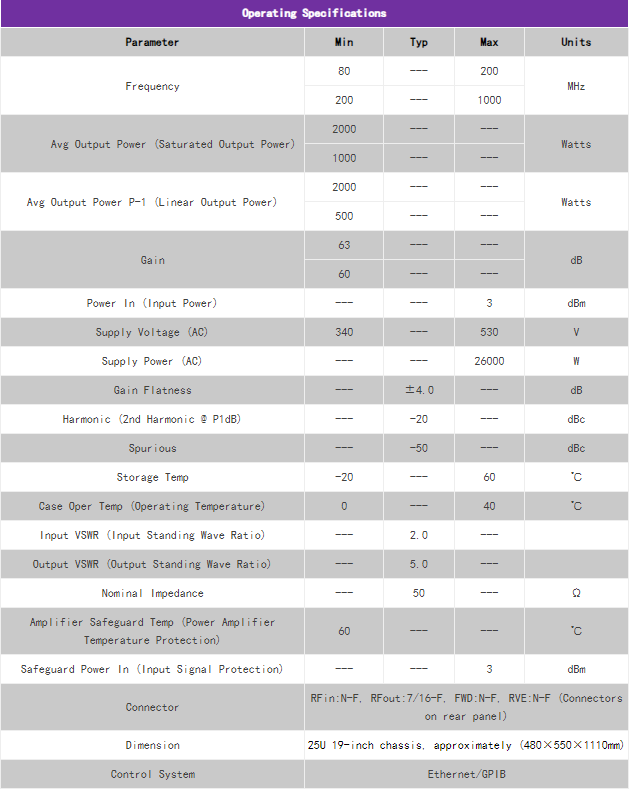

2、Model:LDPA80M1G2000/1000

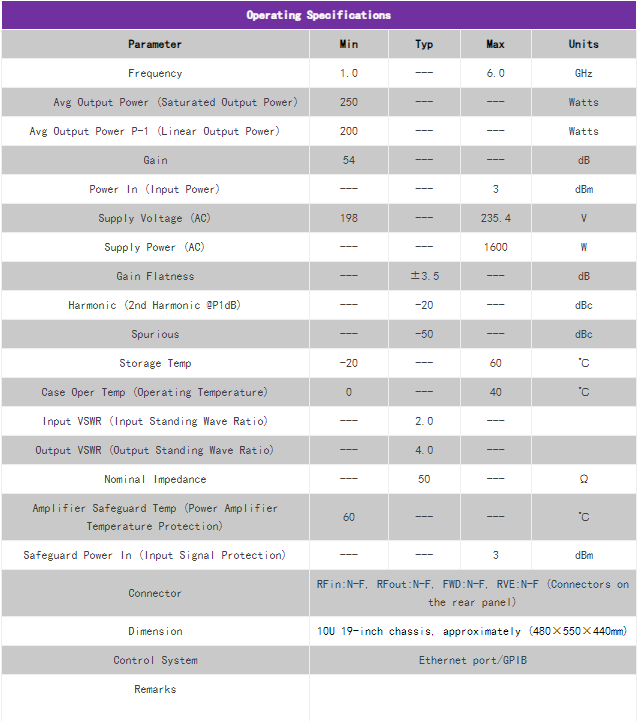

3、Model:LDPA1G6G250

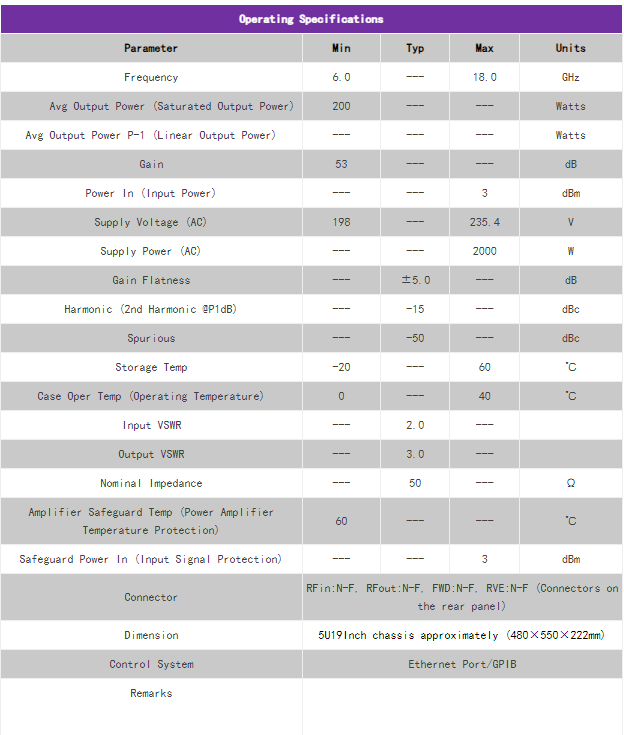

4、Model:LDPA6G18G200

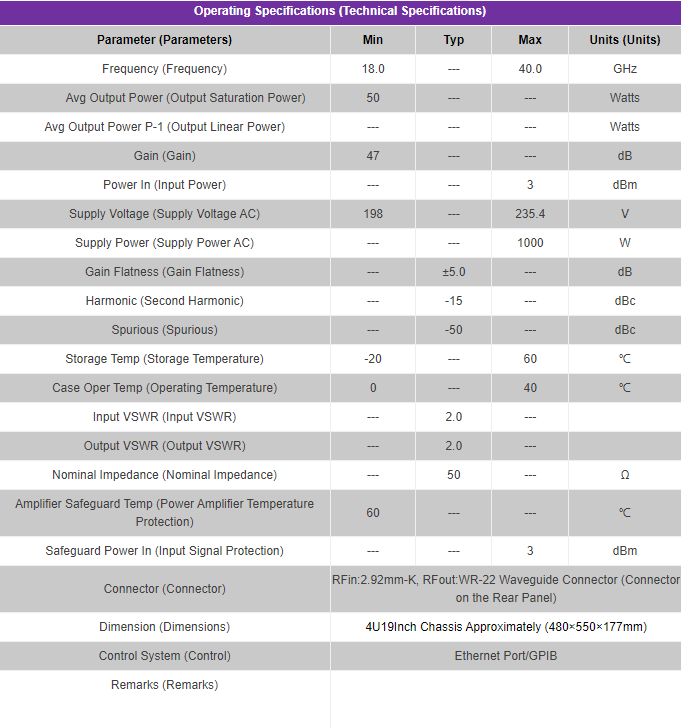

5、Model: LDPA18G40G50
