Module series
Working frequency:4KHz-40GHz.
Output power:1WATTS-250WATTS
Input standing wave:1.5
Output Standing Wave:2.0
Direct current working voltage:24V-36V
Working temperature:0-40℃
Power Module Series Selection Manual
Satisfy3M3VCalibration5.4V,10VCalibration18VField strength test
Human-computer interaction, friendly and generous
Well-designed, beautiful in appearance
Quality reliable, easy to use
ProfessionalEMCPower Amplifier Solutions

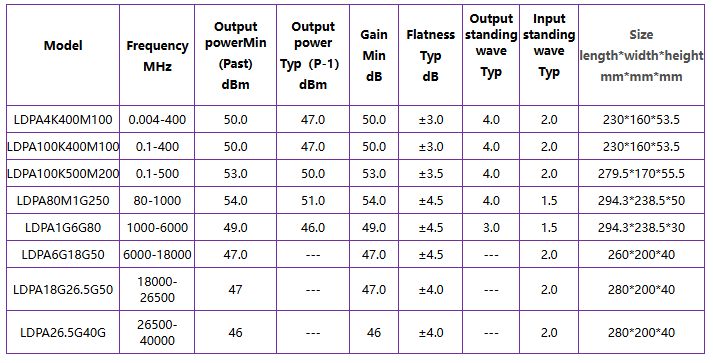

1. Power amplifier module series model
Second, Technical Indicators
1, Model:LDPA4K400M100
2, Model:LDPA100K400M100
3, Model:LDPA100K500M200

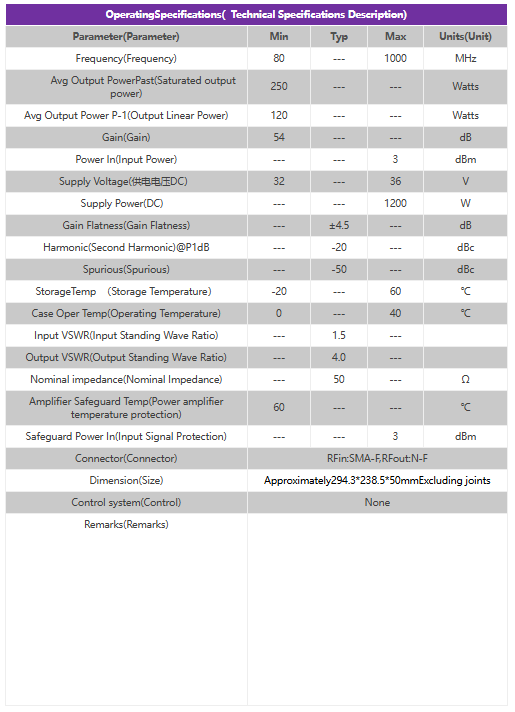

4, Model:LDPA80M1G250
5, Model:LDPA1G6G80
6, Model:LDPA6G18G50
7, Model:LDPA18G26.5G50
8, Model:LDPA26.5G40G40

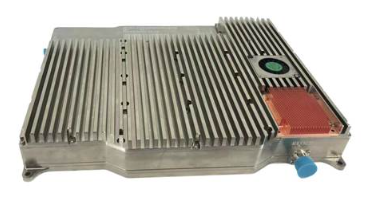

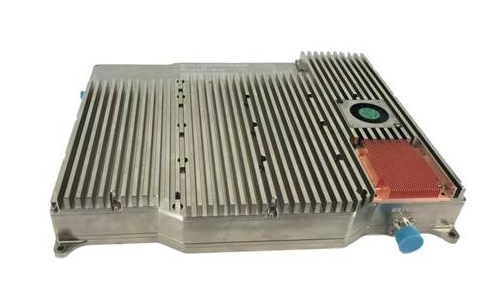

Three, exterior schematic diagram
1) Input port:SMA-F
2) Output Port:N-F
3) Power Port:DSUB7
Note: The appearance index of the product will be optimized and changed with the improvement of the company's products, and the final interpretation right belongs to the company, without separate notice.
